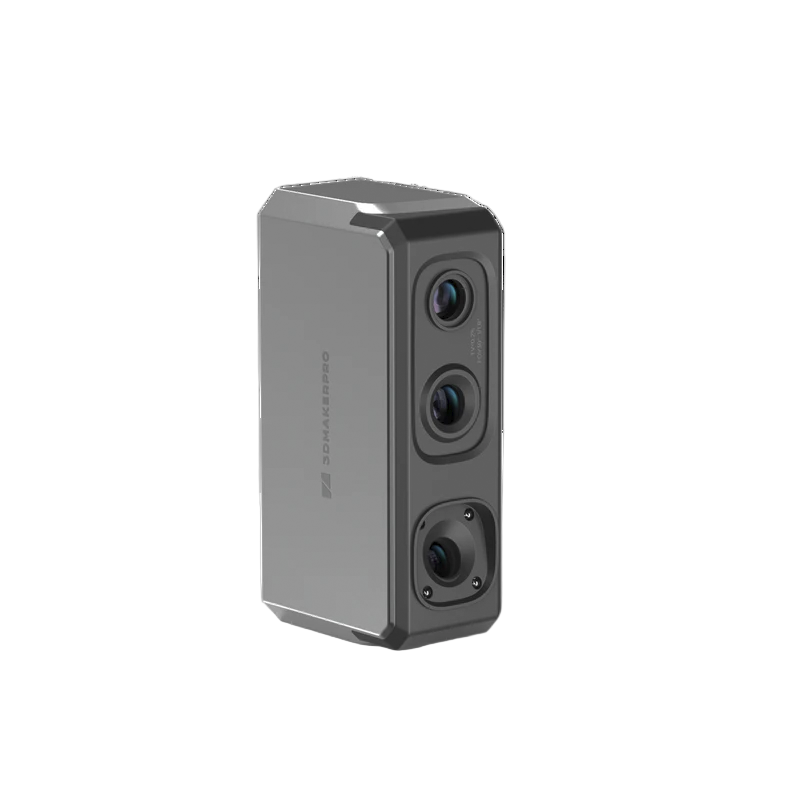

3DMAKERPRO Seal

The Seal 3D scanner from 3DMAKERPRO represents a state-of-the-art tool in the field of 3D scanning technology this compact The device, measuring only 110 x 60 x 350 mm and weighing only 254 grams, is housed in a robust aluminum casing, making it extremely durable and easy to transport might.

Despite its small size, the Seal scanner offers exceptional performance with a remarkable Accuracy of 0.01 mm and one Resolution of 0.05 mm . It is designed to Objects as small as 10 x 10 x 10 mm to scan, with a single capture area of ​​56 x 100 mm and a Scan speed of 10 FPS , which corresponds to 100,000 points per second. The scanner works optimally within a Working distance of 100-200 mm .

Highly versatile

The Seal scanner uses advanced blue light technology with a shorter wavelength of 400 to 500 nanometers, it projects finely detailed structured light. This technology ensures an impressive accuracy of 0.01 mm. even the most complex details such as small dents, textures and edges are captured.

Furthermore, the SEAL scanner has Anti-shake optical lenses utilize optical stabilization to eliminate unwanted jitter and ensure smooth, uninterrupted scanning. Texture Camera The scanner improves the realism of the 3D models by rendering them in 16,777,216 vibrant colors captures with exceptional contrast.

The device is versatile and allows scanning under different lighting conditions and on different materials without the need for markers thanks to its advanced visual tracking. It features a 9-level light adjustment function to adapt to dark colors and bright sunlight.

The JM Studio software

In addition to its technical capabilities, the Seal scanner integrates seamlessly with the JM Studio software , an exclusive tool from 3DMAKERPRO. This software, which includes lifetime free OTA updates, offers Comprehensive capabilities for multi-mode data acquisition, high-resolution preview, texture mapping, and 3D model generation .

The software supports export in several file formats, including OBJ, STL, and ASC, which makes the further processing, refinement, rendering or printing of the scanned models relieved. Furthermore, JM Studio Available for mobile devices , which improves the scanner's portability when used with the Power Grip Gimbal (sold separately) or compatible accessories such as Tripods and Multi-axis turntables improved.

System requirements

The Seal 3D scanner is equipped with Windows 10/11 (64-bit) and MacOS 12/13 Compatible with systems. For mobile devices Android 11 and iOS 16 supported. The minimum Computer requirements The standard configuration includes an 8th generation Intel Core i5 processor, 16 GB of RAM, and an MX250 GPU with 2 GB of VRAM, while the recommended configuration includes an 8th generation Intel Core i7 processor, 16 GB of RAM, and an NVIDIA 1060 GPU with 4 GB of VRAM. These specifications ensure that users will have access to the full performance of the system. possess the processing power necessary to handle the high-resolution scans and detailed 3D models of the Seal scanner .

Models prepared for 3D printing

The versatility and precision of the Seal 3D scanner make it a An ideal choice for a wide variety of applications , including hobby and DIY projects, miniature collections, and board games. The scanned models can directly in lamination software for 3D printing can be imported, providing users with a simple workflow from scanning to production.

The Seal 3D scanner, along with its advanced and robust software and a range of compatible accessories, offers a A comprehensive and versatile solution for high-quality, portable 3D scanning . This combination ensures that users can efficiently capture precise and detailed 3D models, whether for professional applications or personal projects.

General information
Manufacturer	3DMAKERPRO

Scanner properties
Scanning modes	Manual scanning without markers
Alignment mode	Markings/Texture/Features/Color
Working distance	100-200 mm
Minimum scan size	56 mm
Maximum scan size	100 mm
Scan accuracy	0.01 mm

Dimensions and weight
Dimensions	110 x 60 x 35 mm
Weight	0.254 kg

Other
HS Code	8477.59

Other information

Package contents 1x Seal scanner 1x Power adapter (EU) 1x data cable
