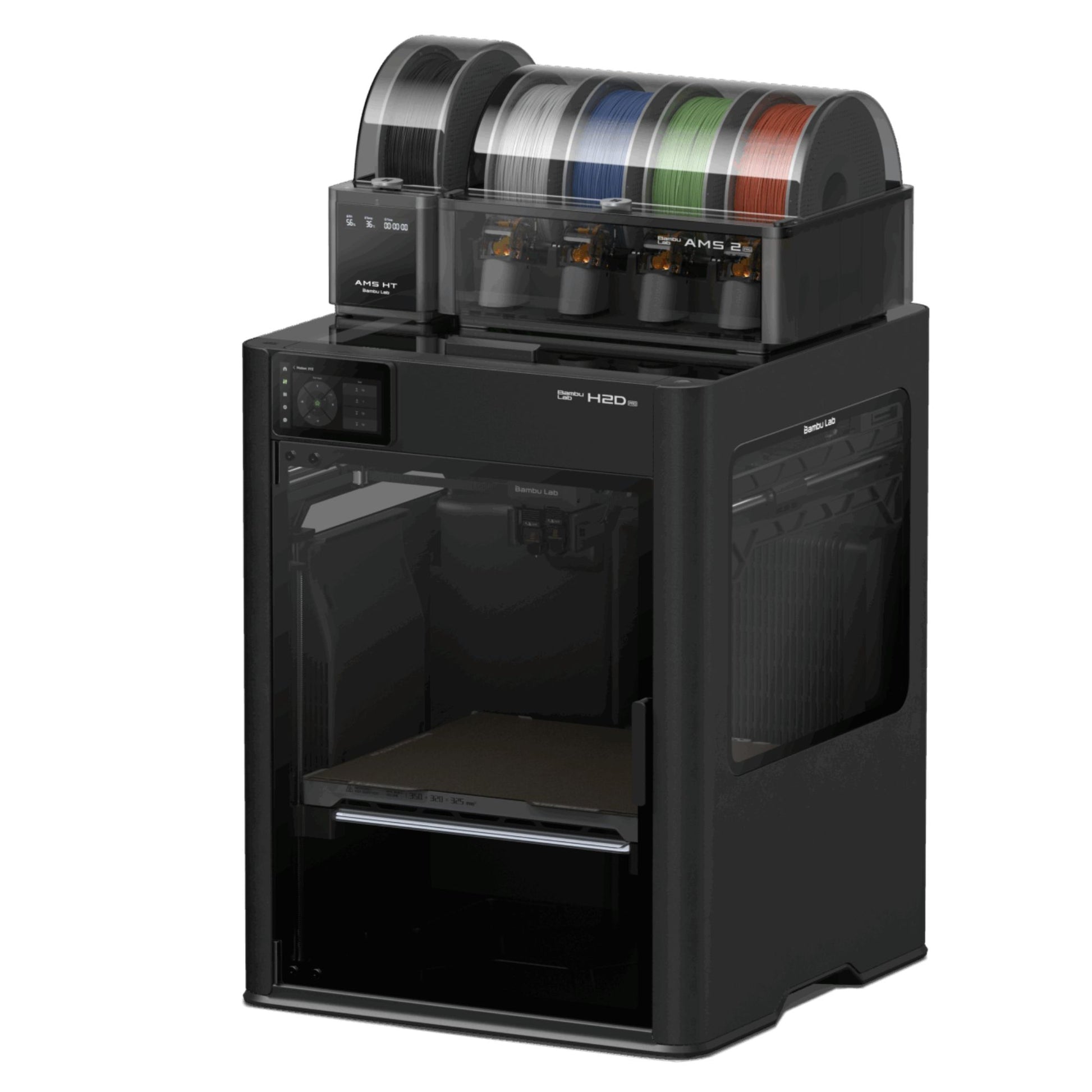

Bambu Lab H2D Pro – Industrial CoreXY 3D printer for high-performance materials

The Bambu Lab H2D Pro is a professional Dual-extrusion 3D printer , designed for professional environments and advanced manufacturing. It uses FDM (Fused Deposition Modeling) technology to produce three-dimensional parts by depositing molten filament layer by layer. Its robust construction combines a Aluminum and steel chassis with an outer frame made of plastic and glass, it offers high stability and durability even under continuous operation.

Pressure volume and structure

It offers a large Print volume : up to 325 × 320 × 325 mm with a single extruder and 300 × 320 × 325 mm in simultaneous double extrusion mode. In extended configurations, a total volume of 350 × 320 × 325 mm This is achieved by combining both extruders. The print bed consists of a flexible steel plate with structured PEI coating (The textured plate is included; a smooth PEI plate is also compatible as an option.) This ensures excellent adhesion during printing and easy removal of the parts after cooling.

Extruder heads and hotend

• All-metal hotend with a maximum temperature of 350 °C , suitable for use with advanced technical filaments (ABS, PC, PA, etc.) and fiber-reinforced composites such as carbon or glass fiber.
• PMSM extruder motor (Permanent magnet synchronous motor) with DynaSense control system, which enables intelligent torque modulation (torque/position sensing at 20 kHz). This reduces clogging, slippage, and vibration during printing.
• Carbide nozzle (Tungsten carbide, hardness HRA 90) with extreme wear resistance: Its hardness significantly surpasses conventionally hardened steel and considerably extends the service life when printing abrasive filaments.
• Integrated filament cutter with standard diameter of 1.75 mm , which facilitates handling and loading of the material.
• Supported nozzle diameters: 0.2, 0.4, 0.6 and 0.8 mm (0.4 mm nozzle included).

Speed ​​and performance

• Maximum head speed up to 1000 mm/s enables extremely fast printing.
• Maximum acceleration of 20,000 mm/s² , optimizes movements and reduces mechanical play during fast movements.
• Extrusion rate up to 40 mm³/s (according to internal tests with ABS at 280 °C), enables the dispensing of large quantities of material in minimal time.
• Advanced cooling system: multiple fans with Closed-loop control for component cooling and heat dissipation (component fan, hotend fan, motherboard fan and chamber fan), thus maintaining stable temperatures even at maximum printing speeds.

Thermal control and heated chamber

The H2D Pro features a actively heated pressure chamber , which can hold up to 65 °C can be maintained. This minimizes Warping and distortion, especially with technical materials. The controlled airflow ensures a uniform temperature distribution across the entire component. Ideal for applications with technical materials.

Air filtration and safety

It features a robust air filtration system for professional environments: a G3 pre-filter, an H12 HEPA filter, and a coconut shell activated carbon filter. This combination effectively removes ultrafine particles and odors (volatile organic compounds), making it suitable for offices or laboratories with limited ventilation.

• G3 pre-filter: It traps coarse dust particles.
• HEPA H12 filter: Retains fine dust and ultrafine particles.
• Activated carbon filter: Removes volatile compounds and odors using coconut charcoal.
• Exhaust fans and internal air recirculation ensure thermal stability and air purification.

Material compatibility

Numerous filaments are supported, from standard materials to technical composites:

• Basic materials: PLA, PETG, TPU, PVA, BVOH (soluble filament).
• Technical materials: ABS, ASA, PC (Polycarbonate), PA (Nylon), PET.
• Composite filaments: PLA/PETG with carbon or glass fiber reinforcement; technical nylons (PAHT-CF); PET-CF (carbon fiber reinforced PET).
• Special materials: PPA-CF/GF (advanced reinforced nylons), PPS, PPS-CF/GF, etc.

Thanks to its high-temperature hotend and controlled chamber, it can reliably print demanding materials and ensures excellent layer adhesion as well as high mechanical strength of the end parts.

Sensors and monitoring

Equipped with a range of state-of-the-art sensors for continuous pressure monitoring:

• Integrated cameras: Overview (top view), nozzle view and printhead view; all with 1920×1080 resolution for real-time monitoring.
• Filament detection: Sensors for filament end and tangling on each feed path (including AMS odometry system) to avoid errors due to material shortage.
• Door sensor: automatically interrupts the pressure when the chamber is opened, thus ensuring operational safety.
• Power outage backup: resumes the printing exactly where it was interrupted.
• HMS 2.0 Diagnostic System: Advanced management that analyzes sensor data and camera feeds to detect errors early and suggest corrective actions.

User interface and connectivity

The H2D Pro features a 5-inch color touchscreen for direct control. In addition to USB, it allows remote management of print jobs via... Ethernet and Wi-Fi connectivity.

Software and user-friendliness

He will be with Bambu Studio Supplied with Bambu Lab's professional slicing software, optimized for its printers and materials. Also compatible with other slicers (PrusaSlicer, Cura, Orca) via standard G-code export, although advanced features may vary. The user interface is intuitive and includes automatic wizards for leveling and calibration. Additionally, the system utilizes its visual sensors for real-time monitoring and adjustment, minimizing manual intervention.

Industrial applications

The H2D Pro is designed for professional use and is ideally suited for advanced manufacturing applications: functional prototyping, end-use engineering parts, custom tooling, and small-batch production. Its ability to process high-performance materials (fiber-reinforced plastics) makes it ideal for industries such as automotive, aerospace, telecommunications, and medical technology. Combining speed, precision, and reliability, it delivers mechanically superior parts with excellent surface finishes, meeting a wide range of advanced manufacturing requirements.

• Functional prototypes and complex multi-color/multi-material assemblies.
• Tools, fixtures and customized manufacturing aids.
• Mechanical or electronic components made from reinforced technical materials.
• Research and development of new materials and individual designs.
• On-demand production of individual parts or small series.

User-friendliness and automation

The H2D Pro's design prioritizes user autonomy and process consistency. It features a automatic, contactless nozzle calibration Before each print, precise alignment of both extruders with micrometric tolerances is ensured. Manual calibration is not required.

The innovative DynaSense extrusion system dynamically modulates extrusion according to filament pressure, reducing friction and improving surface quality. During printing, over 36 sensors along the entire filament path (from the AMS to the hot end) monitor key parameters: feed rate, voltage variations, filament position, extruder temperature, and extrusion pressure, thereby increasing process reliability.

Before each print job, the integrated vision system performs automatic checks (detection of residue on the print bed, identification of the installed nozzle, verification of print parameters) to prevent errors. Overall, the Bambu Lab H2D Pro combines Speed, precision and reliability , reduces human intervention and improves process consistency in demanding production environments.

General information
Manufacturer	Bambu Lab
technology	FDM/FFF

Printer properties
Filament diameter	1.75 mm
Pressure volume	350 mm x 320 mm x 325 mm
Number of extruders	2
Nozzle diameter	0.2mm, 0.4mm, 0.6mm, 0.8mm
Type of display	Touch
Filament end sensor	✓
Print surface	Flexible magnetic
Self-leveling	✓
Air filter	✓
Extrusion system	Direct
Nozzle blockage sensor	✓
Compatible with materials from other manufacturers	✓
Webcam	Yes

Software and connectivity
Connectivity	USB/Wi-Fi/Ethernet
Compatible with third-party software	✓
WiFi connectivity	✓
LAN/Ethernet connectivity	✓

Electrical properties
consumption	220V - 2200W / 110V - 1320W
Automatic resumption after power outage	✔

Printing properties
Resolution of the XY positioning	50 µm
Resolution of positioning Z	50 µm
Layer height	0.08 mm
Maximum extrusion temperature	350 °C
Maximum base temperature	120 °C
Maximum chamber temperature	65°C
Maximum printing speed	1000 mm/s

Dimensions and weight
Dimensions	492 mm x 514 mm x 626 mm
Weight	31 kg

Other
HS Code	8477.5900
