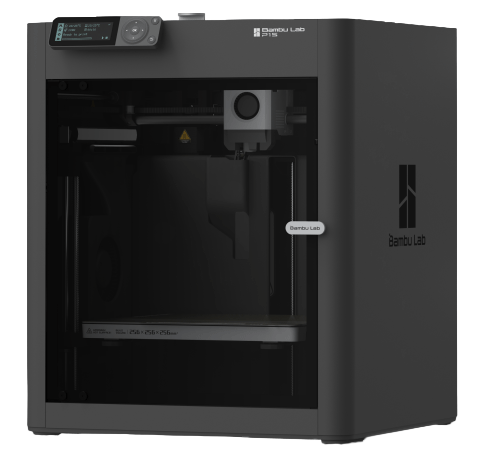

Bambu Lab P1S – Enclosed high-speed 3D printer with CoreXY

The P1S 3D printer from Bambu Lab is the perfect 3D printer for those seeking speed, high extrusion temperature, and an enclosed chamber for improved results with demanding engineering materials. Similar to the The P1P printer from Bambu Lab offers the P1S a build volume of 256 × 256 × 256 mm, a Printing speed of 500 mm/s , an extrusion temperature of up to 300 ºC , a bed temperature of 100 ºC and a wide range of compatible materials How PLA, PETG, TPU, ABS, ASA, PVA and PET, as well as PA and PC.

The P1S printer can be installed in just It can be assembled in 15 minutes. and comes with many features that make the printing process straightforward and easy, regardless of the user's experience level. The P1S is designed to an excellent printing speed as well as a excellent accuracy and surface quality to supply the parts. The chassis is made of welded steel and the P1S's shell is made of robust plastic and glass.

The P1S offers a printing speed of 500 mm/s, a acceleration of up to 20000 m/s², a maximum Tool head speed of 20 m/s² and a maximum Hotend flow of 32 mm³/s. To compensate for vibrations at high printing speeds, Bambu Lab has opted for a active vibration compensation technology decided on the XY axes.

The P1S printer has a automatic bed leveling sensor (ABL), which ensures that the print bed is always correctly aligned for each print layer. The print surface of the P1S printer is a Double-sided textured PEI board that can be exchanged for other bamboo board options.

The P1S is equipped with a direct drive extruder with steel extruder gears Equipped with a design where the motor is directly connected to the extruder. This design allows the P1S printer better control over extrusion and retraction. flexible filaments to have and ensures Precise and consistent extrusion for smooth and smudge-free prints . The P1S printer's hotend is made entirely of metal, which increases durability and Supports long-term 3D printing at high temperatures and speeds . The printer comes with a 0.4 mm stainless steel nozzle, but 0.2, 0.6, and 0.8 mm nozzles can also be used. Compared to the P1P printer, the P1S printer's tool head cable has been improved with a cable chain.

One of the most important features of the P1S printer is its closed chamber with active carbon filtration for printing with materials such as ABS. The P1S offers a more powerful partial cooling system thanks to an additional partial cooling fan, a stable chamber temperature thanks to the chamber regulation fan and a control board fan that cools the control board. All these fans are part of the Closed-loop control system for better control and monitoring.

To ensure maximum print quality and a smooth printing process, Bambu Lab has equipped the P1S printer with various Security solutions equipped:

• One Integrated camera with 1280 x 720 resolution , enabling monitoring and recording of time-lapse videos at a speed of 0.5 fps.
• A Filament end sensor that notifies the user when the filament runs out, allowing for easy reloading of the material and seamless continuation of printing.
• Semi-automatic Belt tension - The tension of the belt is crucial for ensuring dimensional accuracy. Resonance frequency identification is performed each time to maintain the correct tension.
• Power outage recovery Printing can resume once the power supply has been restored.
• Optional filament odometry as part of the AMS module. This function informs the user how much filament has been used and how much is left.
• Fan with speed feedback - To ensure that the fans always operate at their optimal speed, the P1S printer monitors them via speed feedback sensors.

Thanks to these features, the user can start printing immediately and be sure that no potential problem will go unnoticed or unresolved.

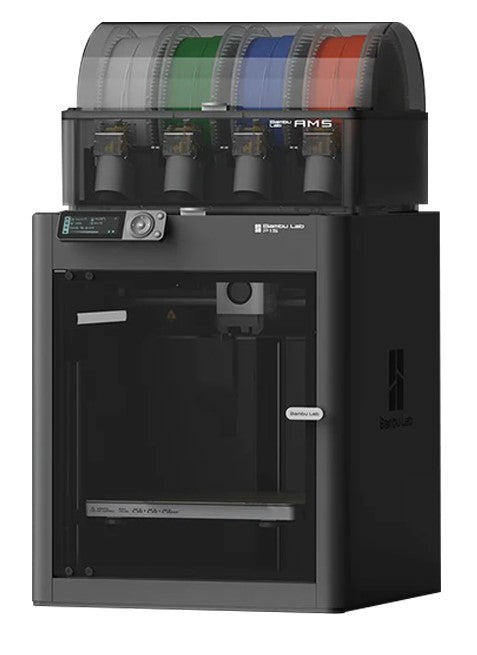

Combo P1S AMS

A very valuable feature of this 3D printer is that it with the The P1S printer is compatible with the Bambu Lab AMS module , a device that enables the printer to 3D print in multi-color and multi-material mode. It can be purchased as a bundle with the... The AMS module can be purchased from Bambu Lab . The parallel 4x4 design of the AMS module fits coils with a width of 50-68 mm and a diameter of 197-202 mm. It should be noted that... TPU or moist PVA should not be used with the AMS module. and it is also recommended Avoid using cardboard spools , as they could slip off.

The AMS module works with a 2-stage feeding system with a Filament selection module and a filament buffer module . The filament selection module has four inlets for connecting to four separate AMS units (with an optional Bambu Lab AMS hub, ideal for 3D printing farms ). Each slot has a A Hall sensor detects the filament, and sensors are used for the filament end and winding. The buffer module's function is to ensure that the filament voltage remains within a specific range. The AMS module comprises... 10 sensors in the filament path to carefully monitor and control the position, speed and tension of the filament as it makes its way to the extruder.

The AMS module contains silicone rubber O-rings to seal the device. to keep it airtight and prevent the filament from absorbing moisture . The moisture-proof system also includes a humidity sensor and two packages. Desiccant is used to absorb moisture. If the humidity inside the AMS module exceeds the default preset value, the humidity sensor detects this and reminds the user to replace the desiccant packets.

P1S AMS 2 Pro Combo (Buffer or Hub)

The Bambu Lab P1S can also be used together with the new AMS 2 Pro The P1S Combo with AMS 2 Pro is available in two versions:

• With Filament buffer to connect a single AMS 2 PRO and use all its features.
• With a AMS Hub, with which up to four AMS 2 PRO can be connected simultaneously – or any combination of up to 4 units from AMS, AMS 2 PRO and AMS 2 HT. This allows up to 16 materials to be combined!

Regardless of the chosen option, the combo set contains all necessary cables and accessories for quick and easy installation.

It offers Multi-material printing and Intelligent filament drying . Thanks to electromagnetic ventilation, a drying temperature of 65 °C and a brushless ultrasonic drive, a fast, dry and precise material flow is guaranteed in your Bambu Lab 3D printer – a new generation of automatic filament management systems for FDM 3D printers.

Compatible with a wide variety of 1.75 mm materials – from the most common filaments How PLA, ABS, ASA and PETG ...up to technical thermoplastics such as PA, PP, PC and POM . Also soluble and supporting filaments such as HIPS, PVA and BVOH can be used.

A major improvement of the AMS 2 Pro is its ability to improve filament quality thanks to a airtight sealing system and the use of internal desiccant to preserve it. This system prevents moisture from impairing the material's performance. A integrated humidity sensor It constantly monitors internal conditions and warns the user to change the desiccant when necessary – crucial to avoid problems such as poor layer adhesion or uneven extrusions.

Official Bambu Lab filaments are automatically supplied by RFID tags The system detects the filament and immediately applies the optimal parameters. Manual configuration is possible for materials from other manufacturers. This also applies to incidents such as filament tangles or blocked spools. The AMS 2 Pro automatically stops printing to avoid errors and prevent material waste.

Furthermore, this module offers a key function for large print jobs: Automatic spool change . When one filament runs out, the printer automatically switches to the next one – without any intervention. This enables uninterrupted printing. It optimizes filament consumption , reduces energy consumption and avoids unnecessary interruptions during long or unattended print jobs.

Applications and benefits

Ideal for professional environments and experienced makers: The AMS 2 Pro maximizes efficiency when printing with hygroscopic materials (nylon, PET CF, PCCF) or abrasive composites – for clean layers , reliable liability and less material waste .

user interface

The P1S printer offers Connectivity via WiFi, Bambu-Bus and Bluetooth. The user interface is displayed on a 2.7-inch touchscreen The printer is displayed, and it can also be controlled via a mobile or web application. The native slicing software for the P1S printer is the... Bambu Studio .

Nevertheless, Third-party slicing software that exports standard G-code, such as Superslicer, Prusa Slicer and Cura, is also compatible (certain advanced features may not be supported).

Speed ​​and quality for creative minds

This 3D printer is ideal for those who want to create a High surface quality and excellent mechanical properties in a smooth and fast 3D printing process who wish to achieve this, possibly in a setup with multiple 3D printers for serial production. This functionality is enabled by the P1S's intelligent connectivity options and a user-friendly interface and slicing software Even simpler. The fully enclosed chamber and the option to use the AMS module open up a wide range of technical 3D printing materials and make the P1S a reliable and versatile 3D printer .

General information
Manufacturer	Bambu Lab
technology	FDM/FFF
Certificates	-

Printer properties
Filament diameter	1.75 mm
Pressure volume	256 x 256 x 256 mm
Number of extruders	1
Nozzle diameter	0.4 mm
Type of display	Touch
electronics	-
Firmware	-
Filament end sensor	✓
Print surface	-
Self-leveling	✓
Air filter	-
Extrusion system	Direct
Screen size	2.7"
Nozzle blockage sensor	-
Compatible with materials from other manufacturers	✓
Webcam	✓

Software and connectivity
software	Bambu Studio / Superslicer / Prusa Slicer / Cura
Supported files	3MF / gcode
Connectivity	WiFi / Bamboo Bus / Bluetooth
WiFi connectivity	✓

Printing properties
Resolution of the XY positioning	80 µm
Resolution of positioning Z	6 µm
Layer height	0.1 mm
Maximum extrusion temperature	300 °C
Maximum base temperature	100 °C
Maximum chamber temperature	40°C
Operating temperature in the environment	-°C
Maximum printing speed	500 mm/s

Electrical properties
input	100-240 V AC, 50-60 Hz
output	-
consumption	(@220V) 1000W / (@110V) 350W

Dimensions and weight
Dimensions	389 x 389 x 458 mm
Weight	12.95 kg

Other
HS Code	8477.5900

Other information

Package contents P1S 1x P1S 3D printer. 1x building platform. 1x bamboo filament. 1x Hotend + Nozzle. 1x accessory box. P1S AMS Combo 1x P1S 3D printer. 1x Automated Material Management System (AMS). 1x building platform. 2x bamboo filament. 1x Hotend + nozzle. 1x accessory box.
