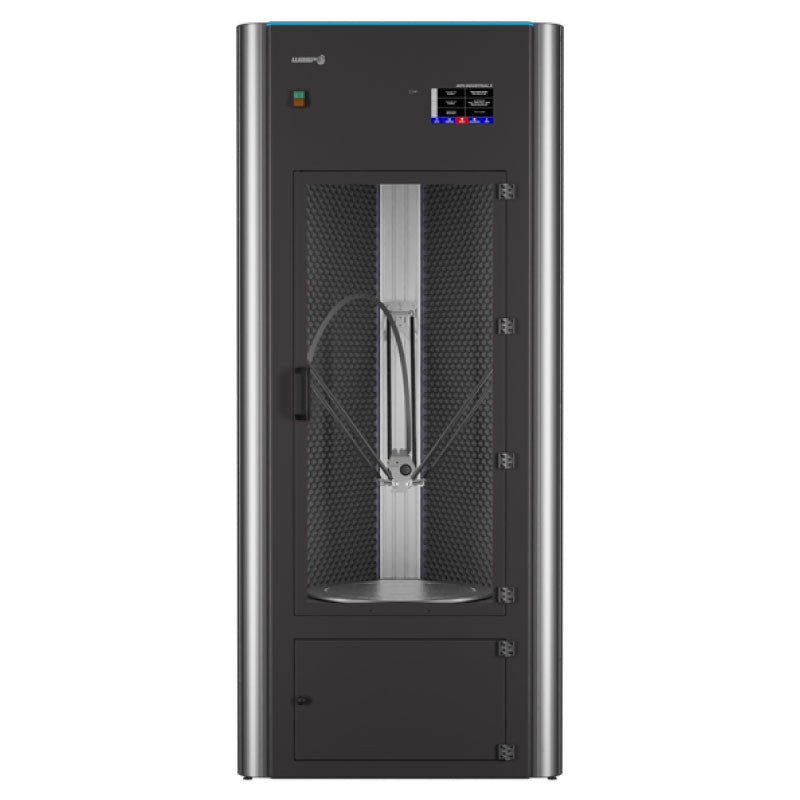

Delta WASP 4070 FX

The delta WASP The 4070 FX represents an advanced solution for professional 3D printing with flexible materials Its stable metal structure, carbon fiber arms, and steel core belts guarantee absolute stability, consistent precision, and quiet operation, even during extended printing processes. The system of active heated chamber maintains a controlled temperature, which reduces the pressure of engineering thermoplastics optimized without affecting the dimensional accuracy of the components.

The design integrates a 2.85 mm direct drive extruder , specifically designed for soft materials with hardnesses from 50 Shore A is optimized. With a maximum temperature of 280 °C and nozzles up to 1 mm It enables the production of functional large components with high surface quality. Its high-performance extrusion system, combined with the innovative The VAC vacuum clamping system offers outstanding reliability in continuous, large-scale production processes.

Main advantages

This professional 3D printers enables the production of flexible components with exceptional repeatability and high-quality surface finish, which reduces rework and reprocessing times. The Vacuum Active Control (VAC) system holds the print bed firmly throughout the entire process and automatically releases the component at the end, thus streamlining the workflow both in terms of performance and efficiency. Rapid prototyping as well as in the industrial production optimized.

The WiFi and LAN connectivity as well as the integrated camera enable Remote monitoring and full control over mobile devices or computers. Furthermore, the new quiet driver and high-precision motors reduce operating noise and improve motion quality. 7-inch touchscreen With a redesigned graphical user interface, it simplifies automatic calibration, access to integrated tutorials and the resumption of interrupted print jobs, ensuring a more robust and smoother printing experience.

Technical specifications and performance

Professional applications

The Delta WASP 4070 FX has proven to be an indispensable tool in research laboratories , Educational institutions and industrial environments established, which demand elasticity, precision, and reliability. In industry, it is used for flexible joints , Vibration damping components and functional prototypes It is used with elastic properties. In the medical and orthopedic fields, it is ideally suited for the production of Splints, prostheses, custom-made supports and corsets and significantly reduces time and costs compared to conventional methods.

Compatibility with materials such as TPU, TPE, PP PLA, PETG ASA and ABS enables the production of customized solutions, from biocompatible parts to durable components for demanding applications.

Use case: Digital orthopedics and additive manufacturing

A remarkable example comes from the Spanish Orthopedics La Milagrosa , which the additive manufacturing has integrated into their clinical practice. The process begins with a 3D scan of the patient, followed by fully customizable digital modeling and printing in flexible polypropylene for the production of corsets and braces. This method replaces plaster molds with a faster, more hygienic and more precise The solution delivers lightweight, aesthetically pleasing parts that perfectly fit the body.

In one of the most important projects, a orthopedic holder for a femoral neck fracture in a newborn A device was developed that offers a less invasive alternative to a plaster cast and allows for greater freedom of movement during recovery. The results showed Cost reduction , less material waste and Shorter delivery times , which confirmed the value of orthopedic 3D printing as a revolutionary tool in the medical field.

Comparison of the 4070 series printers

Reliability, technical support and workflow

The design integrates advanced Diagnostic and recovery systems that ensure project continuity even in the event of unforeseen circumstances. Resurrection System enables the resumption of print jobs after interruptions, while the Free Zeta System The printing is permitted from a certain model height. The interface with integrated tutorials and Remote maintenance Ensures a quick start and optimized maintenance.

Thanks to the balance between Speed, temperature control and repeatability The WASP 4070 FX is suitable for both the intensive prototype phase as well as for the Small batch production and is among the most versatile and reliable professional 3D printers in its class.
