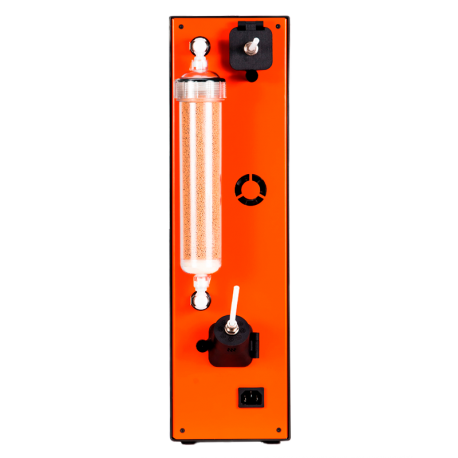

Drywise inline filament dryer

Drywise is an active inline filament drying device For 1.75 mm and 2.85 mm filaments, for users of industrial desktop 3D printers and For special technical filaments . The Drywise brand. belongs to Thought3D , the manufacturer of the famous Magigoo.

Some of the Materials compatible with the Drywise Filament Dryer are listed in the table below. A complete and regularly updated list is available [here/on the website]. You can find information on compatible materials on the manufacturer's website.

Plastics tend to absorb moisture from the surrounding air. (Hygroscopy), especially nylon, PC and PET. If a filament is not properly stored and dried during extrusion, the accumulated moisture expands rapidly, boils, cracks, and forms bubbles in the extruded plastic.

This leads to Problems with surface quality , also known as artifacts, poor adhesion and structural defects in the 3D printed part. Using the Drywise filament dryer is an effective way to prevent filament degradation and ensure the highest print quality with technical materials.

Image 2 shows the difference between parts printed with the same material and on the same 3D printer, once without the use of the Drywise filament dryer (left in each photo) and once with the use of Drywise (right in each photo).

Conventional drying methods (e.g. in an oven) can take up to 48 hours, damage the filament or spool, and also ineffective and inaccurate This is because the user has to guess or estimate the drying parameters for a particular material.

The Drywise filament dryer only needs about 50 minutes to pretreat the filament before the 3D printing process begins. During 3D printing, it dries... Drywise only the section of the filament that is 3D printed, thereby The process is accelerated . Furthermore, the Drywise features Pre-calibrated settings that are adapted to the material selected by the user.

Inline means that The Drywise filament dryer dries the filament during the printing process . This eliminates the need to dry the filament for countless hours before printing and risk it still absorbing moisture. The filament is fed through a guided inlet and outlet.

Furthermore, the Drywise add-on filament preheater (visible in image 4 above the desiccant tube) can be purchased separately, which helps to Highly hygroscopic materials should be pre-dried before being placed in the dryer.

The Drywise filament dryer is not only fast, but also Intelligent, safe, user-friendly, and upgradeable . Drywise is constantly expanding its list of compatible materials certified for use with the device, including calibrated settings. The device is equipped with intelligent sensors equipped which prevent the filament from overheating and over-drying . The same sensors They also recognize moments of inactivity and turn off the heating to ensure safety.

The user-friendly interface consists of It features a 4.3-inch touchscreen, LED lights, and acoustic signals . The user interface is intuitive and warns the user of errors or malfunctions through on-screen messages and red and green LED lights. The screen displays warnings for various events, such as the need to change the desiccant to change or connect, to check the O-rings on the filament connectors, or if no filament movement is detected, or if the user has loaded a filament that is not compatible with the device.

The Drywise filament dryer is an excellent option for Drywise enables the drying of technical filaments without having to guess the parameters or wait countless hours for the filament to dry. a much faster and more agile 3D printing process with excellent results, it eliminates moisture from the filaments and Saves the user time and materials .
