  • Spectrum Filament

PC CF Spectrum -- Auf Anfrage verfügbar

PC CF Spectrum -- Auf Anfrage verfügbar

Regular price €14,90 EUR
Regular price Sale price €14,90 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color: schwarz
format
Quantity

Herstellerkontakt - EU Angaben zur Produktsicherheit

PC CF is a high-performance 3D printing filament from the basic filament series of Spectrum . It was developed to deliver exceptional mechanical strength and durability to offer for industrial applications. Based on the proven PC 275 Filament does it contain a 10% carbon fiber reinforcement increases its stiffness and impact resistance. This makes PC CF the ideal choice for demanding technical projects that require both strength and reliability.

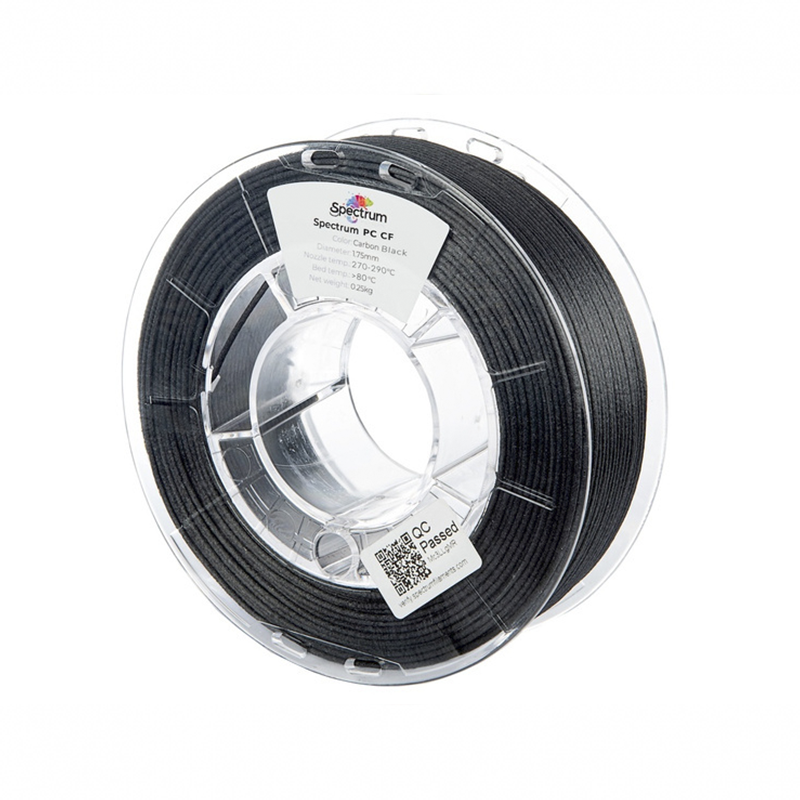

The PC CF filament

Image 1: The PC CF filament. Source: Spectrum.

This filament retains the Key features of the PC 275 , including an excellent Heat resistance , withstanding temperatures up to 150 °C withstands. Furthermore, it offers a strong UV resistance , which ensures long-term stability of printed parts even under UV conditions. External conditions Guaranteed. Optimized for low shrinkage, PC CF ensures precise printing with minimal delay , which leads to a high dimensional accuracy and leads to consistent results.

Applications

One of the outstanding features of PC CF is its ability to Printing large models without a heated chamber is difficult with a variety of... FDM 3D printers This makes it compatible. The integration of carbon fiber not only improves the structural integrity of the printed parts, but also gives them a Attractive matte surface . This makes it ideal for the production of professional prototypes, functional components and industrial tools that require both aesthetic appeal and robust performance.

The properties of PC CF filament

Image 2: The properties of PC CF filament. Source: Spectrum.

With excellent Moisture, chemical and abrasion resistance PC CF is ideal for manufacturing parts that harsh operating environments are exposed. It is frequently encountered in industries such as the Automotive industry, electronics, sporting goods and mechanical components deployed and offers reliable and durable solutions for prototyping and functional applications in demanding fields.

General information

material PC
format 0.25 kg / 1 kg
density 1.22 g/cm³
Filament diameter 1.75 mm
Filament tolerance ±0.03 mm
Filament length (Ø1.75 mm, 250 g) ±85.2 m / (Ø1.75 mm, 1 kg) ±340.8 m
Amount of filler (volume) 10%

Printing properties

Pressure temperature 270-290 °C
Base/bed temperature >80 °C
Temperature in the chamber -
Layer fan 0-20%
Recommended print speed 30-70 mm/s
recommended nozzle hardened steel
Recommended nozzle diameter Min. 0.4 mm

Mechanical properties

Elongation at fracture (D 638) > 100%
Tensile strength (ISO 527) 76 MPa
Train module - MPa
Flexural strength (D 790) 90 MPa
Bending modulus (D 790) 2353 MPa
Surface hardness -

Thermal properties

softening temperature (D 1525) 150 ºC

Other

HS Code 3916.9
Coil diameter (outer) (250g) 140mm / (1kg) 200mm
Coil diameter (inside) (250 g) 52 mm / (1 kg) 52 mm
Coil width (250 g) 44 mm / (1 kg) 67 mm
