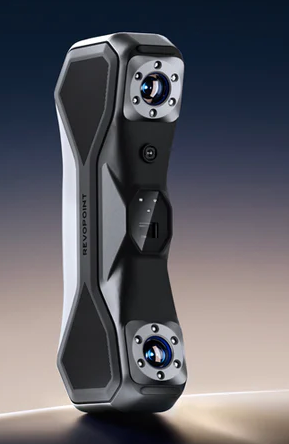

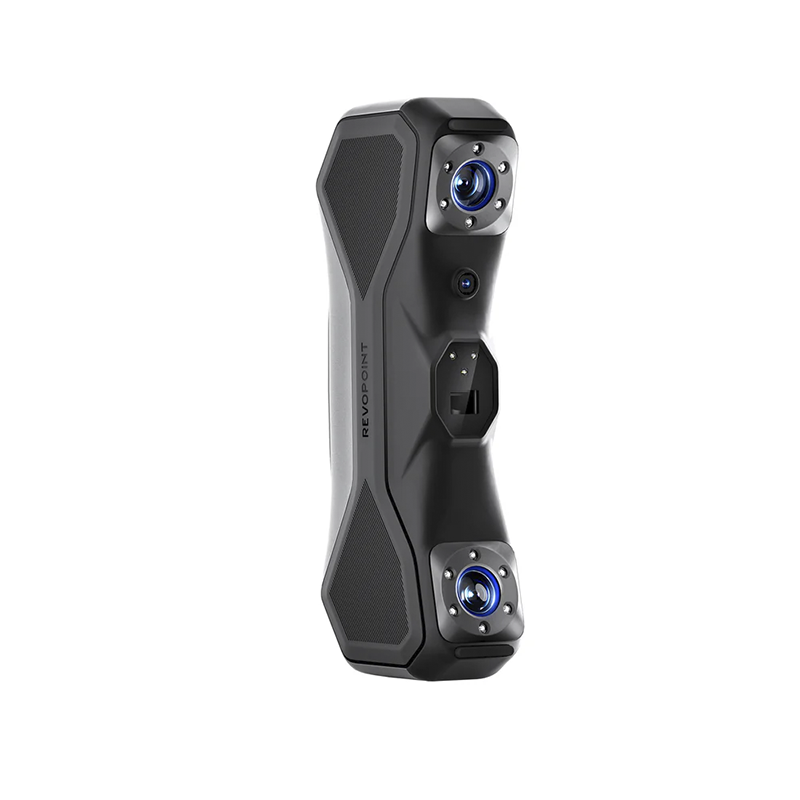

The MetroX 3D scanner from Revopoint is characterized in the 3D scanning industry through its combination of advanced features and a user-friendly design out. It was developed to a Metrological precision to deliver and combines technologies with blue light and structured light in a hybrid system that allows detailed scans with a Accuracy of up to 0.03 mm and to capture with a repeatability of up to 0.01 mm.

Video 1: The features of the MetroX scanner. Source: Revopoint.

His compact form and the intuitive operation enable both handheld as well as Turntable scans , making it a versatile choice for the Scanning small to medium-sized objects does. He excels in areas such as Reverse engineering, quality control, additive manufacturing and rapid prototyping and offers a professional tool for numerous industrial and creative applications.

Video 2: The different scan modes of the MetroX scanner. Source: Revopoint.

The most important special feature of MetroX lies in its innovative multi-mode scan functions . It combines Five unique scan modes , each designed for specific surface types and levels of detail. These include 14 blue laser cross lines , which are well suited for dark or glossy surfaces, as well as Seven parallel blue laser lines , ideal for edges and complex surface details. The scanner also uses a A 62-line blue light structure that quickly generates detailed point clouds without markers. The MetroX is also equipped with a automatic turntable mode equipped and offers a 2 MP HD RGB camera for color scanning (only in turntable mode).

Image 1: The HD 2 MP RGB camera enables color scanning in turntable mode. Source: Revopoint.

In terms of performance, the MetroX is on fast, comprehensive data collection It is designed and achieves up to 800,000 points per second in multi-laser mode and an impressive 7 million points per second in full-field structured light mode. It has a Working distance from 200-400 mm and offers a flexible single-mount frame from 70x160 mm at closer distances to 215x300 mm at maximum distance. Its Angle of view It measures 43x33º, which allows it to capture fine details even at different scan angles. minimum scan volume It measures 10x10x10 mm, which makes it suitable for small, complex objects suitable, while its maximum volume reaches 1x1x1 m and scanning larger objects made possible.

Image 2: The accuracy and precision of the MetroX scanner enable the capture of even the smallest details without noise. Source: Revopoint.

Thanks to this unique combination of scan modes, the MetroX ideally suited for difficult surfaces How black or metallic to capture objects without that Scansprays are required. However For transparent, black, highly reflective, or mirrored surfaces, the use of a scan spray in multi-laser mode is recommended, and it is highly recommended for full-field structured light mode. Three tracking modes – Feature, Marker and Global Marker – are tailored to different object features, with the Global Marker offering improved volumetric accuracy, which is particularly useful for featureless or larger objects.

Image 3: The simple button system makes operation easy. Source: Revopoint.

The user-friendly features The MetroX scanners are designed for efficiency and ease of use, including a USB connectivity and a Four-button control system for easy operation. dedicated software of the scanner, Revo Scan allows complete control of the scanning process, from point cloud generation to meshing and editing.

Figure 4: The RevoScan software. Source: Revopoint.

Users can export the scan data in formats such as PLY, OBJ, STL, ASC, 3MF, GLTF and FBX export for seamless integration with CAD software such as Quicksurface, Geomagic Wrap or Geomagic Control, as well as applications for the 3D printing to enable this. This robust system supports optimized scan-to-CAD workflows and allows for easy collaboration with quality assurance processes, thereby increasing productivity and reliable, high-quality results can be achieved.

MetroX Advanced

It is possible to use the MetroX scanner in Advanced Package to acquire, equipped with the Marker block kit (The scanner itself remains the same as in the standard package). This accessory significantly improves scanning efficiency by... Marker requirements minimized for laser scans, especially for objects without features in full-field mode. reusable marker The kit allows for flexible setup, as it freely combined and strategically placed can be used to optimize scanning.

Video 3: The Advanced package includes the marker block kit. Source: Revopoint.

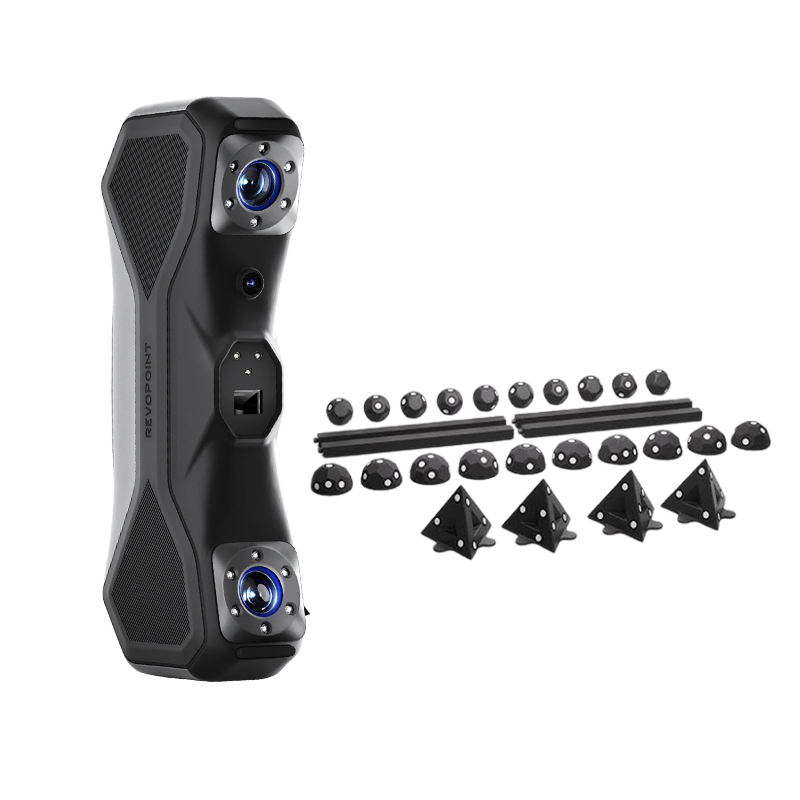

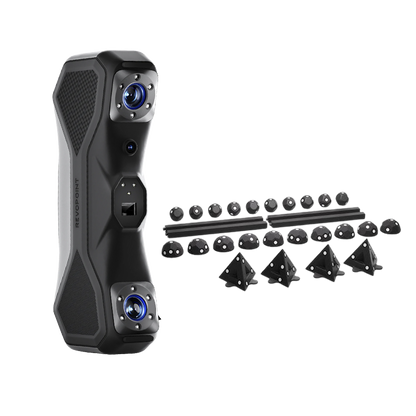

The marker block kit contains a Variety of marker shapes : 10 Dome marker , 4 Pyramid markers , 10 ballpoint pen marker and 4 Stick markers , all magnetic for secure attachment. Another element of the marker block kit is... 500 marker points for precise details. This versatility not only speeds up the scanning process but also reduces setup complexity, which is why the MetroX Advanced Edition This makes it ideal for professionals looking for high-quality and efficient scanning solutions .

General information
Manufacturer	Revopoint

Scanner properties
light source	LED
Scanning modes	Manual scanning / with tripod / with turntable
Alignment mode	Markings/Features/Color
Working distance	200 - 400 mm
Minimum scan size	10 x 10 x 10 mm
Maximum scan size	1000 x 1000 x 1000 mm
Scanning platform	✓
Maximum part size	215 x 320 mm
Scan accuracy	0.03 mm

Software and connectivity
Connectivity	USB-C
Minimum computer requirements	(Windows) CPU Intel i7 10thGen 10700 / AMD Ryzen 7 5800, RAM ≥32 GB, GPU (optional) NVIDIA GeForce RTX 3050 (8 GB) / (macOS) CPU M1 Pro/Max/Ultra, RAM ≥16 GB
Recommended computer requirements	(Windows) CPU ≥ Intel i9 12thGen / RAM ≥64 GB, GPU ≥ NVIDIA RTX 4060 (8 GB) / (macOS) CPU M2 Pro/Max/Ultra, M3 Pro/Max/Ultra, RAM ≥24 GB

Electrical properties
input	12 V DC, 3 A

Dimensions and weight
Dimensions	209 x 88 x 44 mm
Weight	0.508 kg

Other
HS Code	8477.59

Other information

Package contents MetroX Standard MetroX scanner. Tripod. Scanner mount. Wrist strap. Dual-axis turntable. Sample figure. USB Type-C to Type-A adapter. USB Type-A to Type-C cable. Power adapter. Calibration plate. Marker. Carrier bag. Quick Start Guide. Warranty card. MetroX Advanced Everything is included in the standard package. Marker block kit: 10 magnetic dome markers. 10 magnetic ball markers. 4 magnetic pyramid markers. 4 magnetic stick markers. 500 marker points.
