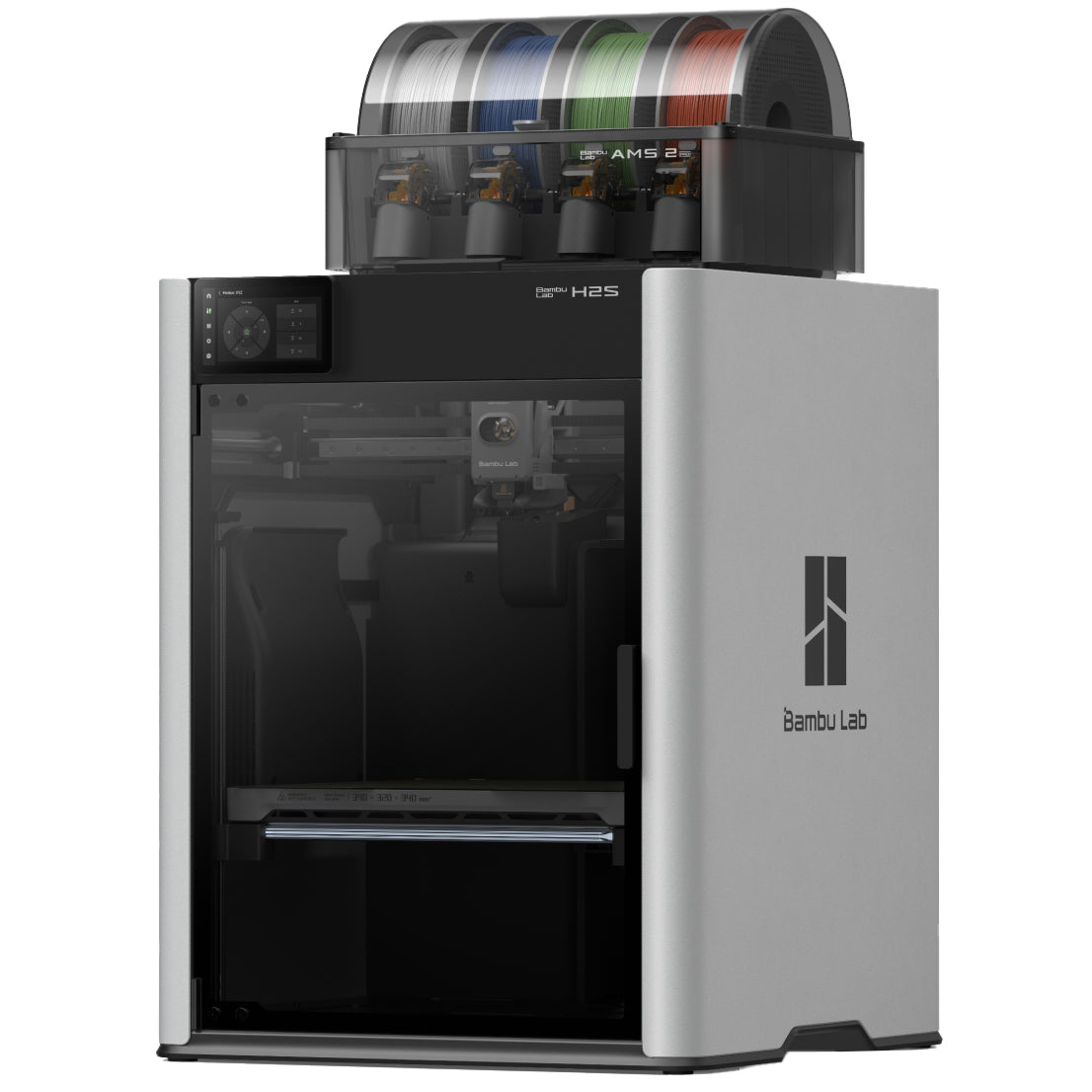

Bambu Lab H2S – High-performance CoreXY 3D printer for technical materials

The Bambu Lab H2S is a large-format 3D printer designed for professional manufacturing environments. It functions as a personal manufacturing center, integrating advanced FDM printing, laser engraving and cutting, and digital cutting capabilities on a single platform. With a build volume of 340 × 320 × 340 mm (The largest in the H-series) enables the production of large-format components with high quality and detail, thus reducing the need for assembling multiple parts. The robust structure made of aluminum and die-cast steel ensures stability at high speeds and supports complex prints without loss of precision.

Precision and performance

The H2S is equipped with a patented servo-PMSM extrusion system that 20,000 samples per second This architecture dynamically regulates the extruder's torque. It delivers up to... 10 kg extrusion force – 67% more than a conventional stepper motor – thus enabling reliable high-throughput printing. The printhead can reach speeds of up to 1,000 mm/s at accelerations of up to 20,000 mm/s² achieve this, reducing printing times by up to [amount] compared to the X1 Carbon 30% reduced without affecting quality.

Furthermore, active vibration compensation eliminates micro-vibrations and resonances in real time, ensuring smooth surfaces and sharp edges even at maximum speed. The optional optical encoder automatically corrects mechanical deviations during calibration, maintaining continuous motion precision of less than 50 μm (regardless of the distance traveled) and ensures an exact adjustment of components designed for tight tolerances.

Material compatibility and heated chamber

Equipped with an all-metal hotend that can withstand temperatures up to 350 °C reached, and a thermally controlled chamber until 65 °C The H2S supports the entire range of Bambu Lab technical filaments. These include PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA (nylon), PET, PPS and their reinforced versions with carbon or glass fibers (e.g., PA-CF, PC-CF, etc.).

Thanks to the closed-loop circulating fans and the active temperature control of the chamber, Warping and minimizes deformation, thereby improving adhesion between layers. It is also compatible with Bambu Lab's multi-feed systems (AMS 2 Pro and AMS HT), enabling multicolor or multi-material printing with up to four spools simultaneously. The filament compartment features active ventilation for dehumidification during drying and automatic spool rotation, optimizing print quality for delicate filaments, while RFID synchronization automatically adjusts drying parameters to the filament type.

Large installation space and robust design

The H2S offers the largest installation space in the H-series: 340 × 320 × 340 mm . Its integrated die-cast aluminum alloy chassis provides a stable and rigid base, minimizing micro-torsion and displacement during rapid movements, and is ideal for printing large functional components such as enclosures, industrial prototypes, or molds. It features PEI-coated build plates (textured and smooth) with a heated bed of up to... 120 °C , suitable for technical materials and ensuring adhesion. The printer measures 492 × 514 × 626 mm and weighs approximately 30 kg, reflecting its industrial construction and mechanical stability.

Integrated 3D printing, laser cutting and digital cutting functions

The Bambu Lab H2S is a versatile manufacturing platform. In addition to 3D printing, it features a 10W laser module (455 nm) that can quickly and precisely cut and engrave materials such as plywood (up to 5 mm), acrylic, leather, or rubber. A BirdsEye camera and a head-mounted camera enable... Real-time spatial alignment , allowing the user to visualize the laser or cutting path directly on the material with an accuracy of approximately 0.3 mm.

The The Air Assist system removes smoke and particles, maintains clean cut lines, and prevents smudges. It also features a digital cutting module with a blade (45° angle, adjustable pressure up to 600 gf, for flat materials such as paper, vinyl, and leather) and a drawing module for automating lines, sketches, or handwritten notes with repeatable precision. All functions are managed through the Bambu Suite software, which automatically arranges parts on the worksheet to optimize material usage and enable seamless transitions between 3D printing and laser or cutting operations.

Smart sensors and security

The H2S features a comprehensive monitoring system with 23 sensors and 3 cameras, controlled by AI algorithms. It monitors key parameters in real time, such as filament runout, voltage and consumption, the temperature of the nozzle, bed, and chamber, as well as the proper functioning of each module (extruder, AMS, laser, etc.). The vision system detects filament jams, tangles ("spaghetti"), or problems in the hopper before they affect printing, thus preventing errors. For safety, it is equipped with five flame sensors, door and lid monitoring, and an emergency stop switch. It also features laser safety protection and a highly efficient air filtration system (G3 pre-filter, H12 HEPA filter, and activated carbon) that removes particles and odors. Before each print, an automatic inspection of the chamber and platform is performed to remove any residue and ensure the integrity of the printing environment.

Ease of use and connectivity

The H2S's design optimizes operation in professional environments. Nozzles can be changed quickly without tools or extensive recalibration, simplifying maintenance and experimentation with different diameters (0.2–0.8 mm). The 5-inch color touchscreen (720×1280) provides an intuitive user interface for local control, while the Bambu Studio software (compatible with Windows, macOS, and Linux) manages model preparation. It supports remote control via Wi-Fi or USB, both cloud-based with the Bambu Handy mobile app and offline for safety-critical environments. Developer mode allows access to the MQTT port for easy integration of third-party software or process automation. Thanks to active motor noise reduction and optimized airflow, it operates at a noise level below [insert noise level here]. 50 dB , ideal for offices or laboratories without acoustic disturbances.

Professional and industrial applications

Thanks to its combination of large build volume, extreme precision, and advanced materials, the Bambu Lab H2S is suitable for a wide range of industrial applications. It is used for the production of original prototypes, custom tooling, and high-strength end-use parts in industries such as automotive, aerospace, consumer electronics, and mechanical engineering. Its multicolor and multi-material capabilities enable the creation of detailed architectural models, multi-layered product housings, and custom components.

The laser module expands the possibilities for hybrid prototyping and signage work, enabling decorative panels and flat components (wood, acrylic, leather) to be cut or engraved with professional precision. Combined with the Bambu software ecosystem (Bambu Studio, MakerWorld, MakerLab), this printer offers professional 3D printing users a complete platform for research, development, and small-batch production, maximizing creativity and efficiency.

General information
Manufacturer	Bambu Lab
technology	FDM/FFF
workload	340 mm x 320 mm x 340 mm

Printer properties
Filament diameter	1.75 mm
Pressure volume	340 mm x 320 mm x 340 mm
Number of extruders	1
Nozzle diameter	0.2mm, 0.4mm, 0.6mm, 0.8mm
Type of display	Touch
Filament end sensor	✓
Print surface	Flexible magnetic
Self-leveling	✓
Air filter	✓
Extrusion system	Direct
Screen size	5"
Nozzle blockage sensor	✓
Compatible with materials from other manufacturers	✓
Webcam	✓

Software and connectivity
Connectivity	USB/WiFi/Ethernet
Compatible with third-party software	✓
WiFi connectivity	✓
LAN/Ethernet connectivity	✓

Printing properties
Resolution of the XY positioning	50 µm
Resolution of positioning Z	50 µm
Layer height	0.08 mm
Maximum extrusion temperature	350 °C
Maximum base temperature	120 °C
Maximum chamber temperature	65°C
Maximum printing speed	1000 mm/s

Electrical properties
consumption	220V - 2050W / 110V - 1170W
Automatic resumption after power outage	✔

Dimensions and weight
Dimensions	492 mm x 514 mm x 626 mm
Weight	30 kg

Other
HS Code	8477.5900

Other information

Package contents H2S: Bambu Lab H2S Textured PEI plate Spool holder Accessory box Security key H2S Combo: Bambu Lab H2S Textured PEI plate Spool holder Accessory box AMS 2 Pro Security key H2S Laser Full Combo 10W: Bambu Lab H2S Laser Edition Textured PEI plate Spool holder Accessory box AMS 2 Pro 10 W laser module Cutting module with pen holder laser platform cutting platform Security key Ventilation hose Laser and cutting materials Emergency stop button
