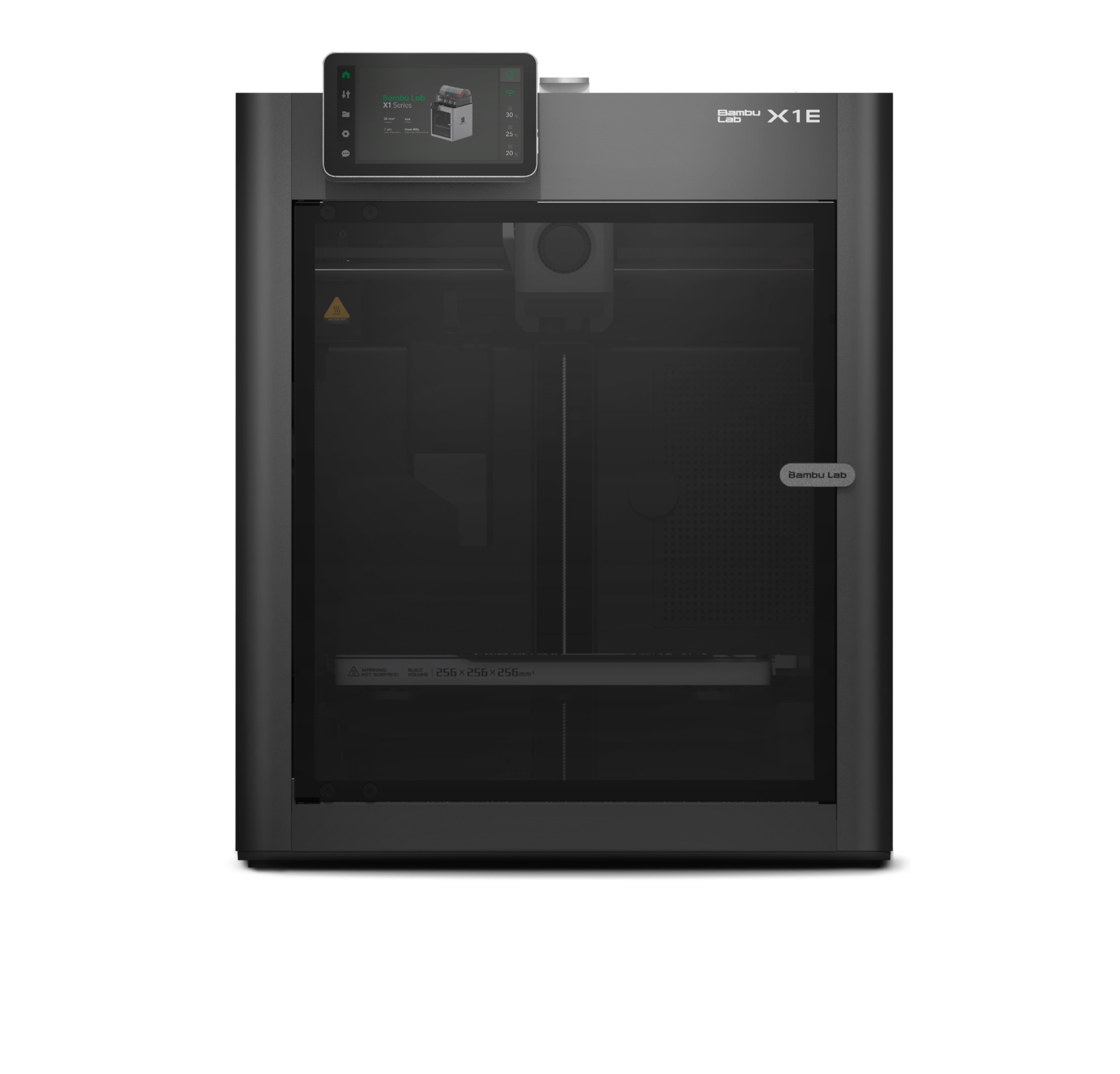

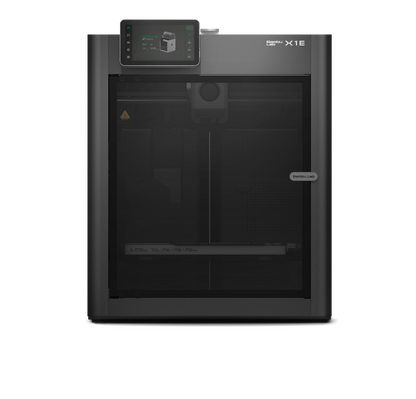

Bambu Lab X1E Combo – Industrial-grade high-speed 3D printer with AMS

To complete its range of FDM 3D printers for end users, Bambu Lab has added the The X1E FDM 3D printer is specifically designed for professional and engineering applications . It features a build volume of 256 x 256 x 256 mm and an extrusion temperature of 320 °C , a bed temperature of 110-120 °C and one With its actively heated chamber (max. 60°C), the X1E 3D printer is ideally suited for 3D printing with Standard, engineering, and advanced filaments. The X1E printer features a Impressive selection of compatible materials , including PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS, PPA and their carbon and glass fiber reinforced versions.

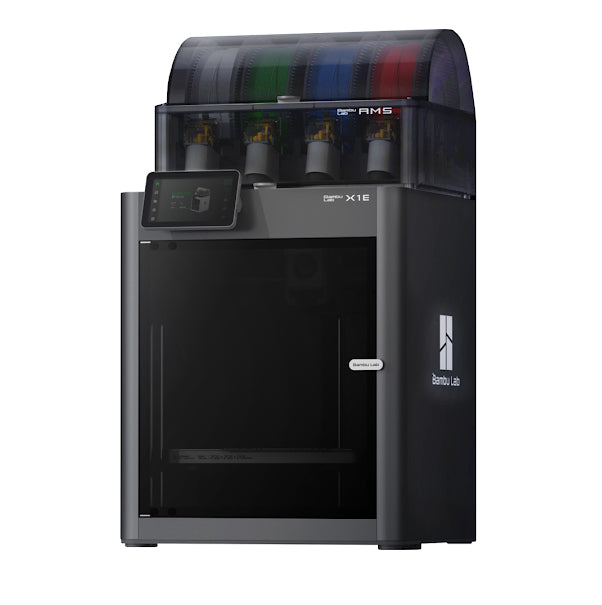

AMS module included

Another valuable feature of this 3D printer is that it with the Bambu Lab AMS module is supplied, a device that gives the printer the ability to in Multicolor and multi-material mode for 3D printing. It is possible to connect 4 AMS modules to the X1E printer simultaneously, giving the user the opportunity to to 3D print with up to 16 filaments simultaneously , for example support filaments or different colors.

The AMS module also has the function of automatic filament reloading for more efficient printing. This intelligent filament management is a great asset for engineering environments where time, efficiency and quality are of utmost importance.

Reliable movement and extrusion

The extrusion system of the X1E printer was designed to... fast but reliable extrusion to ensure the proper extrusion of materials requiring high temperatures. The X1E features an all-metal hotend and a 0.4 mm hardened steel die that can extrude at up to 320 °C, resulting in high dimensional stability, high heat resistance and excellent mechanical performance with materials such as PPA-CF/GF, PPS or PPS-CF guaranteed.

The X1E offers an impressive Print speed of 500 mm/s . To offer stable performance at such speeds, the X1E was equipped with a stable chassis and an XY structure equipped. This is achieved through the integration of modern Carbon fiber rods achieved in the CoreXY motion system.

These high-quality components enable an impressive Tool head acceleration of 20,000 mm/s² is achieved by effectively minimizing the mass of the moving elements. This increased acceleration capability allows the X1E to maintain its maximum traverse speed of 500 mm/s. to maintain extended intervals , which leads to a significant reduction in the overall printing time .

Any XY-axis vibrations or extrusion problems are actively addressed by the Vibration and extrusion compensation function Balanced . All measurements are taken automatically by the printer, so the user can be assured of precision and quality. without manual adjustments or guesswork can enjoy.

Furthermore, the X1E is equipped with a powerful AI algorithm equipped, which uses Lidar and Computer Vision (1920 x 1080 camera included) any irregularities in the first layer or the so-called Spaghetti Monster. When this happens, the X1E automatically pauses the printing process to To avoid filament waste and machine downtime .

Clean and safe working area

Air filter For engineering 3D printers, safety features are essential to ensure a clean and safe working environment, maintain print quality, and comply with regulatory requirements. Bambu Lab has equipped the X1E 3D printer with a highly efficient individual multi-layer air filter system equipped.

It is a combination of This air filter features a G3 pre-filter, an H12 HEPA filter, and a high-quality activated carbon filter with coconut shells . It ensures optimal air filtration, reduces odors, and guarantees a safe working environment when extruding materials such as ABS, ASA, PA, PC, or carbon fiber composites.

Professional Connectivity

To meet the requirements of professional engineering environments To meet these needs, the X1E 3D printer offers advanced connectivity options that operating outside the cloud enable and fully function within a local network. This feature is particularly useful for universities, laboratories, design offices, etc. Users also have the option of managing the X1E printer remotely via LAN communication. without the need for an internet connection .

In addition to operating outside the cloud, the X1E offers Stable connectivity via an Ethernet connection for trusted network communication in complex environments. A third connectivity option is A Wi-Fi connection using WPA2-Enterprise authentication (EAP-PEAP/EAP-TLS/TAP-TTLS). This option includes physical kill switches for both Wi-Fi and Ethernet. Work environments with strict network security requirements .

These connectivity options allow for flexible adaptation to the professional environment, whereby Security and confidentiality are guaranteed when required . Full specifications for connectivity options can be found in the product datasheet in the download area.

Everything you need for engineering applications

The X1E 3D printer from Bambu Lab is The ultimate FDM solution for professional environments where time, quality, safety, and reliability are paramount . This is due to its multi-material capability with the AMS module, its compatibility with a wide range of materials, its high printing speed, as well as its stable chassis, air filtration system, and numerous connectivity options for dynamic engineering environments. The X1E 3D printer is ideally suited for Fast additive manufacturing in demanding conditions .

General information
Manufacturer	Bmabu Lab
technology	FDM/FFF
Certificates	-

Printer properties
Filament diameter	1.75 mm
Pressure volume	256 x 256 x 256 mm
Number of extruders	1
Nozzle diameter	0.4 mm
Type of display	Touch
electronics	Dual-core Cortex M4, Quad ARM A7 1.2 GHz
Firmware	-
Filament end sensor	✓
Print surface	Flexible
Extrusion system	Direct
Screen size	5"
Nozzle blockage sensor	-
Compatible with materials from other manufacturers	✓

Software and connectivity
Compatible with third-party software	✓
WiFi connectivity	✓
LAN/Ethernet connectivity	✓

Dimensions and weight

Other
HS Code	8477.5900
