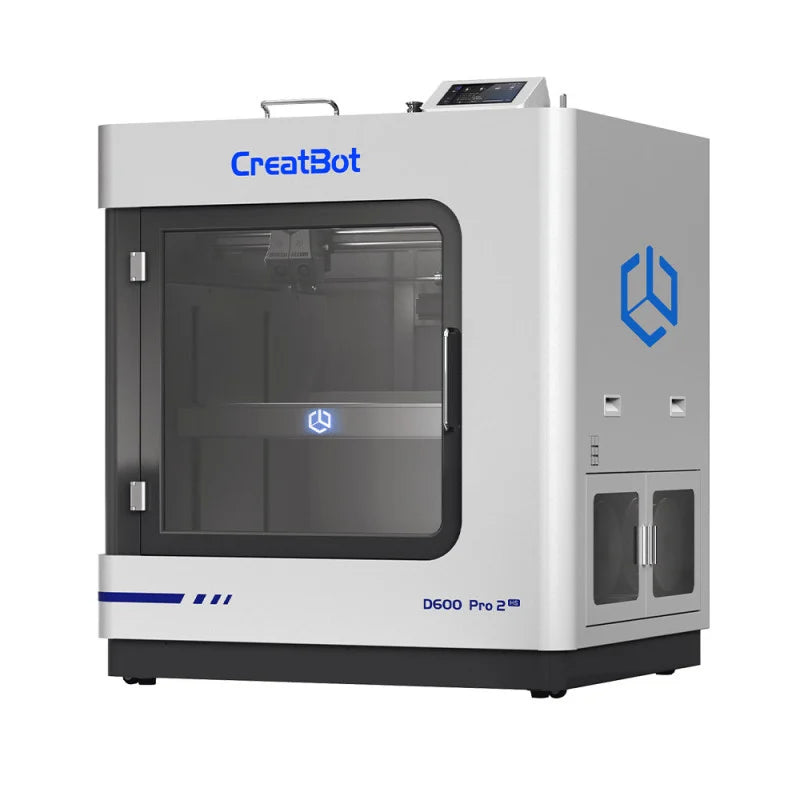

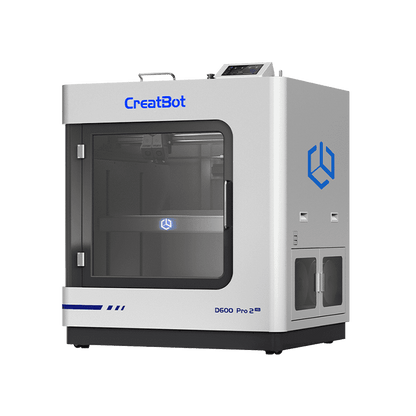

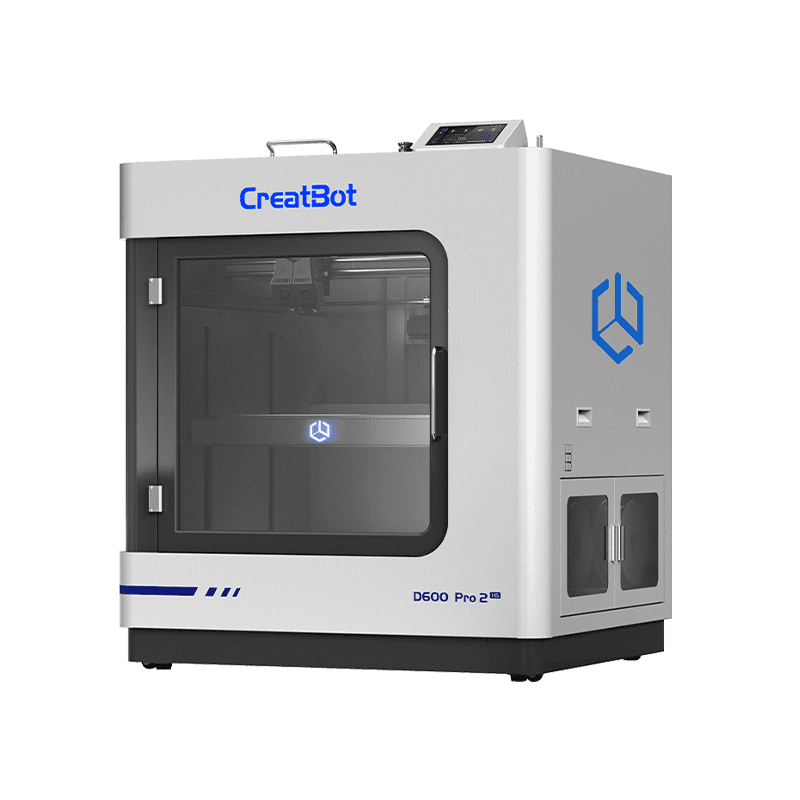

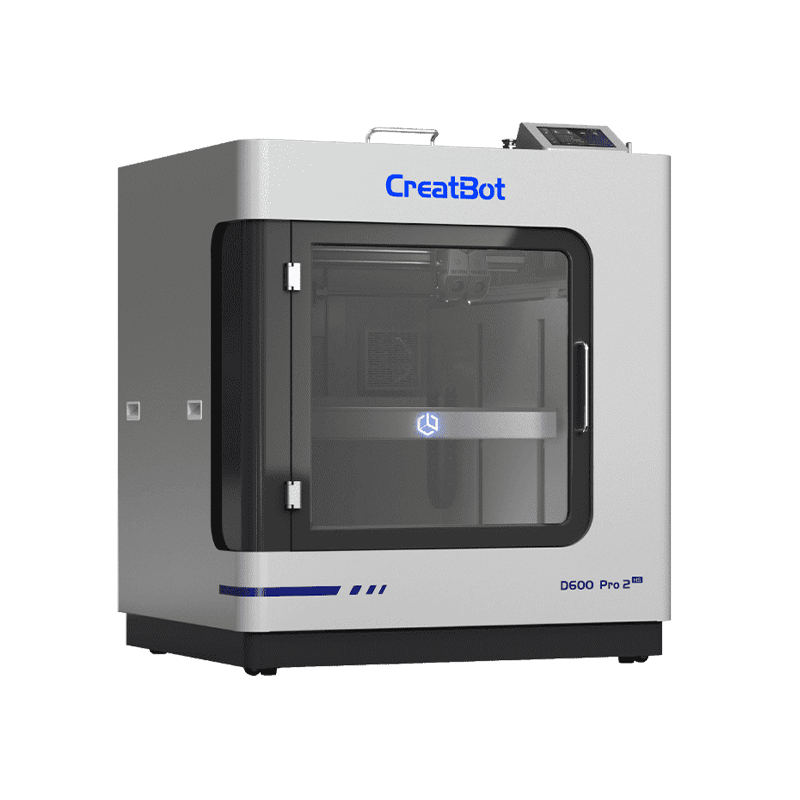

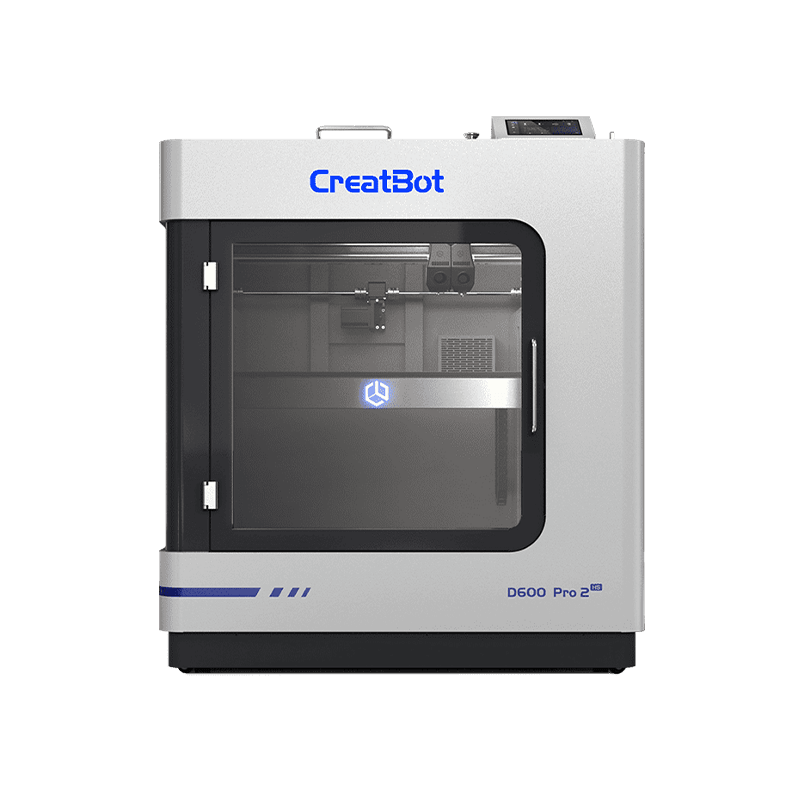

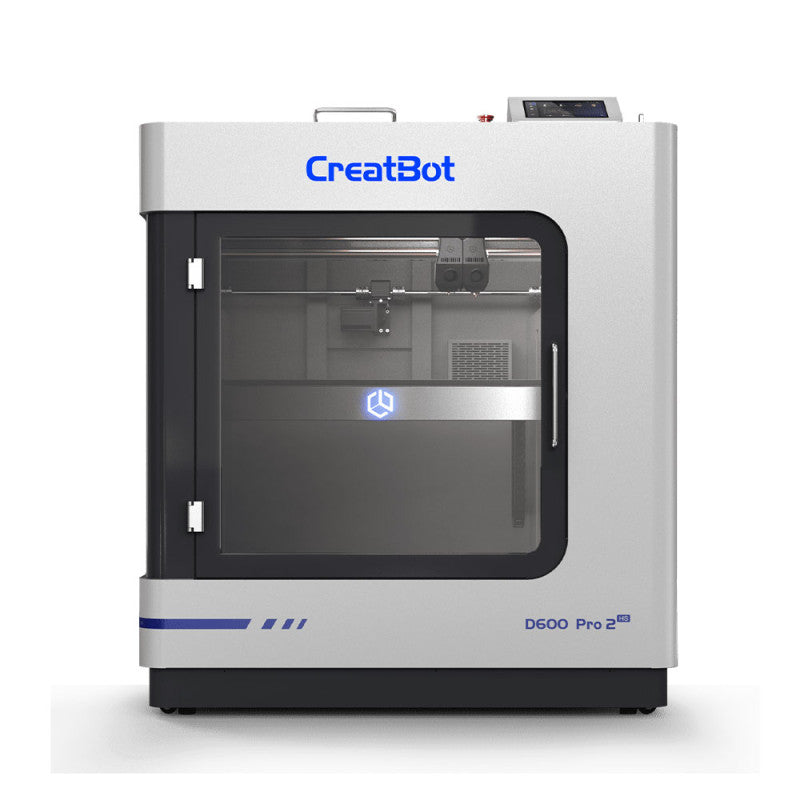

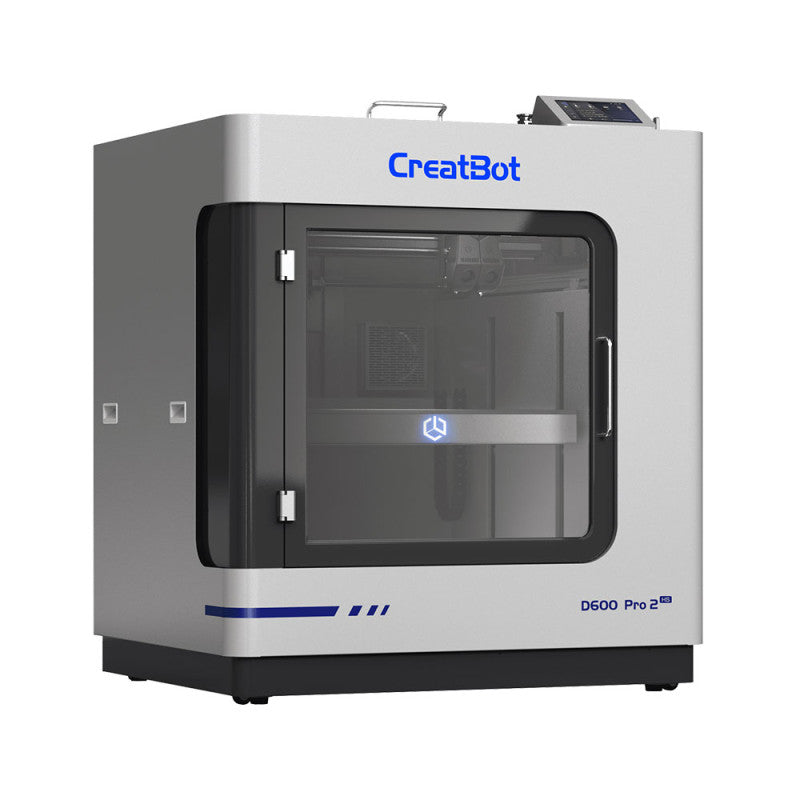

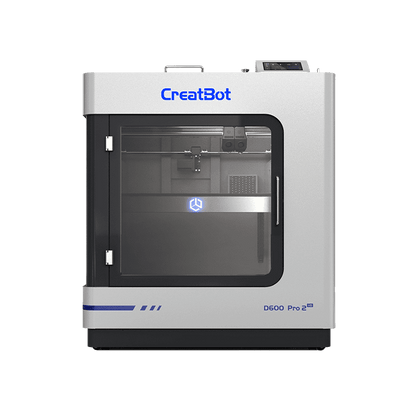

CreatBot D600 Pro 2 HS – High-performance industrial printer with dual-heat system

The 3D printer D600 Pro 2 HS from CreatBot This printer represents a significant advancement in professional 3D printing technology, the result of years of research and continuous improvement. It has established itself worldwide as the most popular professional large-format 3D printer. Over the years, the D600 Pro model has been perfected based on user needs and feedback, incorporating approximately 30 improvements to product details, integrating new technologies, and offering high stability and efficiency as an FDM 3D printer, making it particularly favored by small and medium-sized enterprises.

The Version D600 Pro 2 HS is an extension of the model D600 Pro 2 and offers a high-speed printing version based on the Clipper technology based, with a new hotend , which has a record flow rate of up to 90 mm³/s achieved and a stable printing speed of up to 300 mm/s offers five times the speed of the previous version.

The D600 Pro printer meets the stringent requirements of professional users worldwide fulfilled, especially those working with a pressure range of 600 mm³. Key features are a maximum extrusion temperature from 420 °C , a heated pressure plate , which extends up to 100 °C achieved, and a chamber ambient temperature of 70 ºC , which underlines the ability for highly precise and durable production.

New high-speed extrusion system

The 3D printer CreatBot D600 Pro 2 HS has a advanced extrusion system that enables the new automatically retractable direct drive dual extruder includes. High-speed extruder enable nozzle operation at temperatures of up to 420 °C , which increases the pressure to a wide range of 3D printing materials enables, including PLA , ABS , fiber-reinforced materials, PA, Ultra-PA, UltraPA-CF, PET-CF, PC, ASA or PETG .

The Magic Box technology guarantees a perfect texture in the Z-direction.

A photoelectric switch It detects the position of the print head relative to the print bed in the minimum and maximum ranges of the X and Y axes using light-based sensors. This guarantees a Precise calibration prevents movements beyond the defined limits and contributes to a safe and exact Working method at.

The construction space

The 3D printer D600 Pro 2 HS is with a fully enclosed construction space equipped to handle up to 70°C It can be heated. This function ensures a constant temperature, significantly reducing the risk of cracking and deformation, which is common in prints with ABS and other technical materials. Furthermore, the printer frame offers a Dedicated filament compartment for storing spools during printing , which is especially important when working with moisture-sensitive 3D printing materials. The temperature in this compartment can reach up to... 70°C to reach.

The HEPA and activated carbon air filter system It effectively adsorbs impurities and gases produced during the printing process, thus improving safety and environmental protection, making the printer suitable for use at home, in schools, and in offices. heated print bed The D600 Pro 2 HS can handle temperatures of up to 100 °C This is crucial for printing materials such as ABS, ASA, or PC. On the print bed made of aerospace-grade aluminum there is a Removable PEI magnetic platform with PEI coating , which enables optimal adhesion and easy removal of parts and for the continuous operation without demagnetization was designed to withstand high temperatures.

Connectivity and intelligent features

The D600 Pro 2 HS is equipped with advanced connectivity and intelligent features that ensure greater efficiency and ease of use. It offers a 7-inch color touchscreen with multilingual support for intuitive control and navigation. The printer supports USB connection and USB drives as well as WiFi for versatile printing methods.

Compatible slicing software includes CreatWare , Simplify3D , Cura and Slic3r , and can process file formats such as STL, OBJ, AMF and G-code. Power outage recovery This allows the D600 Pro 2 HS to resume from the last recorded point after a power outage, thus minimizing data loss. Filament detection Automatic pause helps prevent printing errors by automatically stopping the printing process when the filament is running low or runs out.

Automatic bed calibration It ensures consistent adhesion of the first layer by adjusting the bed height based on sensor feedback. automatic shutdown It saves energy by switching off the printer after printing is complete. integrated camera This enables remote monitoring of the printing progress during the Emergency stop switch It offers a quick way to stop the printer in case of an error. These features together ensure a more efficient, reliable and user-friendly printing process with the D600 Pro 2 HS.

Advanced additive manufacturing

The CreatBot D600 Pro 2 HS 3D printer is Designed for printing with standard and technical 3D printing materials , including hygroscopic, deformable and fiber-reinforced materials, thanks to its advanced thermal parameters and a fully enclosed structure . robust printer design, advanced hardware and high-quality electronics They guarantee precision and repeatability, even at high printing speeds, with large parts and in series production.

The large build volume, high print resolution, high print speed and dual extrusion capabilities make it Ideal for manufacturing complex, high-quality parts in various industries , including aerospace, automotive, and industrial applications. The printer's intelligent features make it safe and reliable for 24/7 operation , facilitating the creation of complex prototypes, durable functional parts and specialized components, and meeting the stringent requirements of professional additive manufacturing.

General information
Manufacturer	CreatBot
technology	FDM/FFF
Certificates	CE, RoHS, FCC

Printer properties
Filament diameter	1.75 mm
Pressure volume	Single: 600 x 600 x 600mm / Dual: 540 x 600 x 600mm
Number of extruders	2
Nozzle diameter	0.6 mm
Type of display	Touch
electronics	-
Firmware	-
Filament end sensor	✓
Print surface	Flexible magnetic
Self-leveling	✓
Air filter	✓

Software and connectivity
software	CreatWare / Simplify3D / Cura / Slic3r
Connectivity	USB / WiFi

Printing properties
Resolution of the XY positioning	100 µm
Resolution of positioning Z	10 µm
Layer height	0.04-0.50 mm
Maximum chamber temperature	70°C

Other
HS Code	8477.5900
